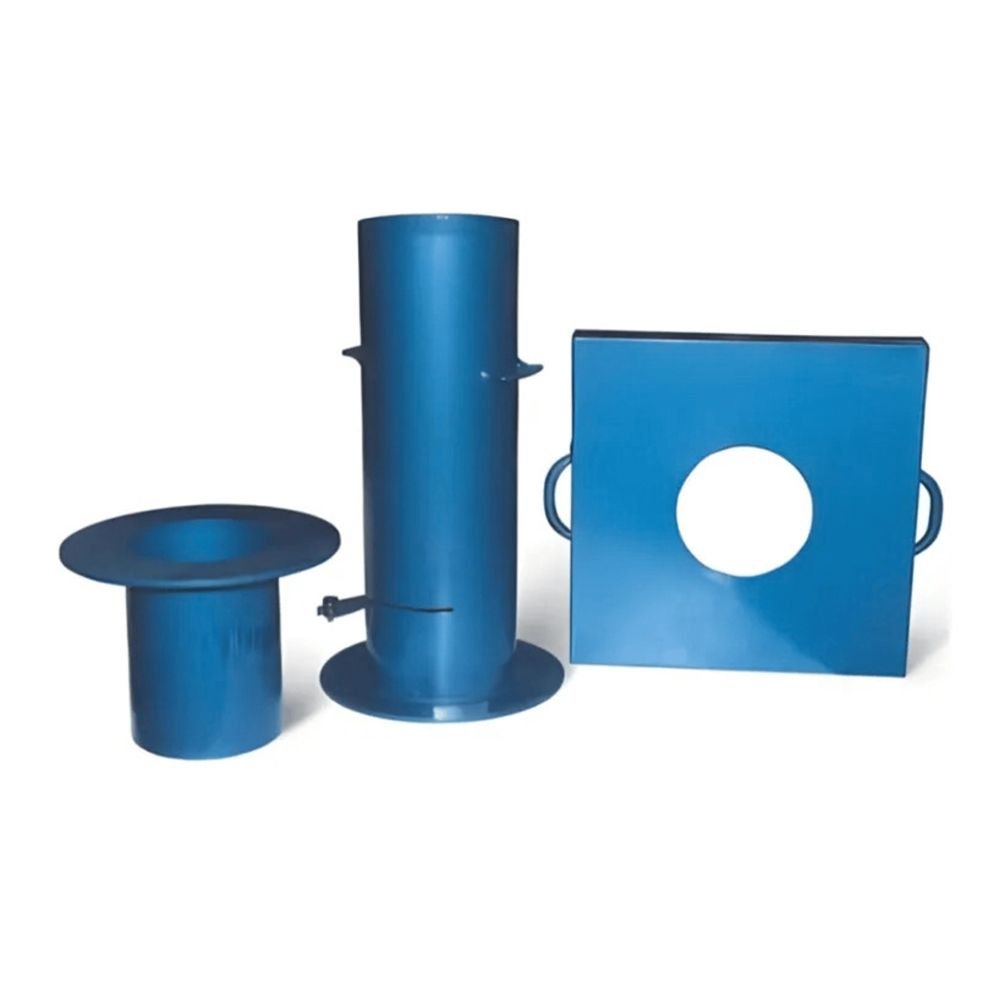

Standard apparatus for field density testing
of soils by the sand replacement method.
Sand Pouring Cylinder is designed for determining the in-situ dry density of soils by the sand replacement method. Manufactured with precision components for accurate and reliable field density testing in civil engineering applications.
Request Quote Specifications
Accurate determination of field density of soils by the sand replacement method.
The Sand Pouring Cylinder works on the principle of the sand replacement method for determining the in-situ dry density of soils.
A small hole is excavated in the soil and the excavated soil is carefully collected and weighed. The hole is then filled with standardised sand using the pouring cylinder.
The volume of the hole is determined from the weight of the sand filling it, and the in-situ dry density of the soil is calculated from the weight of the excavated soil and the volume of the hole.
| Product Name | Sand Pouring Cylinder |
| Application | Field Density Test by Sand Replacement Method |
| Cylinder Material | Mild Steel / GI Sheet |
| Cylinder Diameter | 100 mm / 150 mm / 200 mm Options |
| Cylinder Capacity | As Per Standard Specifications |
| Shutter Arrangement | Leak Proof Shutter Provided |
| Conical Funnel | Standard Conical Funnel Provided |
| Standard Compliance | As Per Standard Test Methods |
| Usage | Field & Laboratory Testing |
| Customization | Custom Specifications Available on Request |
Sand Pouring Cylinder provides accurate and repeatable results for field density testing of soils by the sand replacement method. It is built with precision components for reliable performance in the field.
It is used to determine the in-situ dry density of soils by the sand replacement method in the field.
The sand replacement method determines the volume of an excavated hole by filling it with standardised sand, from which the in-situ dry density of the soil is calculated.
Standard sizes include 100 mm, 150 mm and 200 mm diameter cylinders. Custom sizes are also available on request.
Standard accessories include the pouring cylinder, conical funnel, shutter and calibration accessories.
Yes, the apparatus is specially designed for on-site field density testing of soils.
Yes, custom specifications can be provided on request.
For specifications and quotation, contact Labtek Enterprises.
