Casagrande apparatus for accurate determination
of liquid limit of soils in laboratory testing.

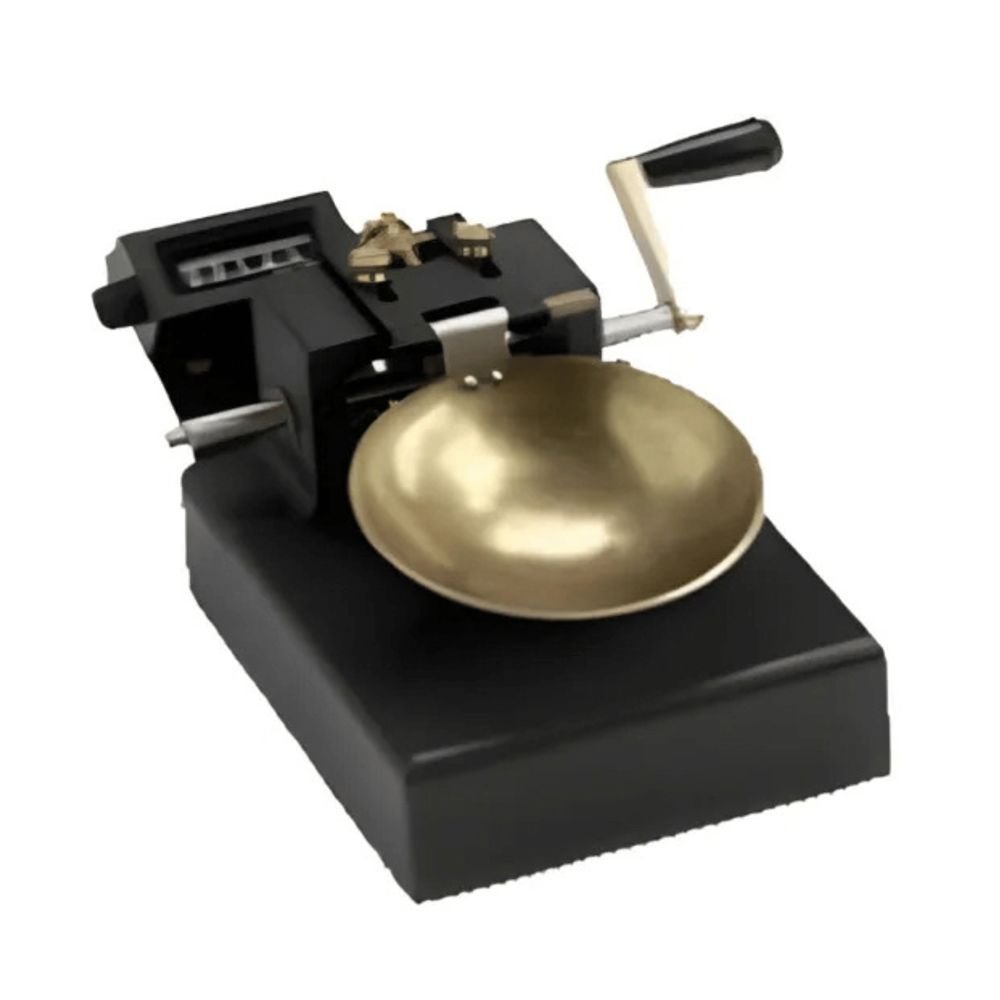

Liquid Limit Device (Casagrande Apparatus) is designed for determining the liquid limit of soils. Manufactured with accurate dimensions and sturdy construction for reliable soil testing in civil engineering laboratories.
Request Quote Specifications
Accurate determination of liquid limit of soils as per standard test methods.
The Liquid Limit Device works on the principle of the Casagrande method. A soil sample mixed with water is placed in the brass cup and a groove is cut through the center using the grooving tool.
The cup is then dropped repeatedly from a fixed height by operating the crank handle. The number of blows required to close the groove over a standard length is recorded.
The moisture content corresponding to 25 blows gives the liquid limit of the soil sample as per standard test procedures.
| Product Name | Liquid Limit Device (Casagrande Apparatus) |
| Application | Determination of Liquid Limit of Soils |
| Cup Material | Brass |
| Cup Diameter | Approx. 54 mm |
| Drop Height | 10 mm |
| Base Material | Hard Rubber |
| Operation | Manual Crank Handle |
| Grooving Tool | Standard Grooving Tool Included |
| Standard Compliance | As Per Standard Test Methods |
| Usage | Laboratory Soil Testing |
| Customization | Custom Specifications Available on Request |
Liquid Limit Device provides accurate and repeatable results for soil consistency testing. It is built with precision components for reliable performance in laboratory conditions.
A Liquid Limit Device is used to determine the liquid limit of soils, which is an important parameter in soil classification and geotechnical testing.
The cup drops from a standard height of 10 mm with each rotation of the crank handle.
The cup is made of brass with accurate dimensions as per standard specifications.
Yes, a standard grooving tool is normally provided with the Liquid Limit Device.
Yes, motorized versions are also available for automatic operation. Please contact us for details.
Yes, custom specifications can be provided on request.
For specifications and quotation, contact Labtek Enterprises.
